Here are some pictures of building some of the parts for the hot plate, and computerized foil advance system.

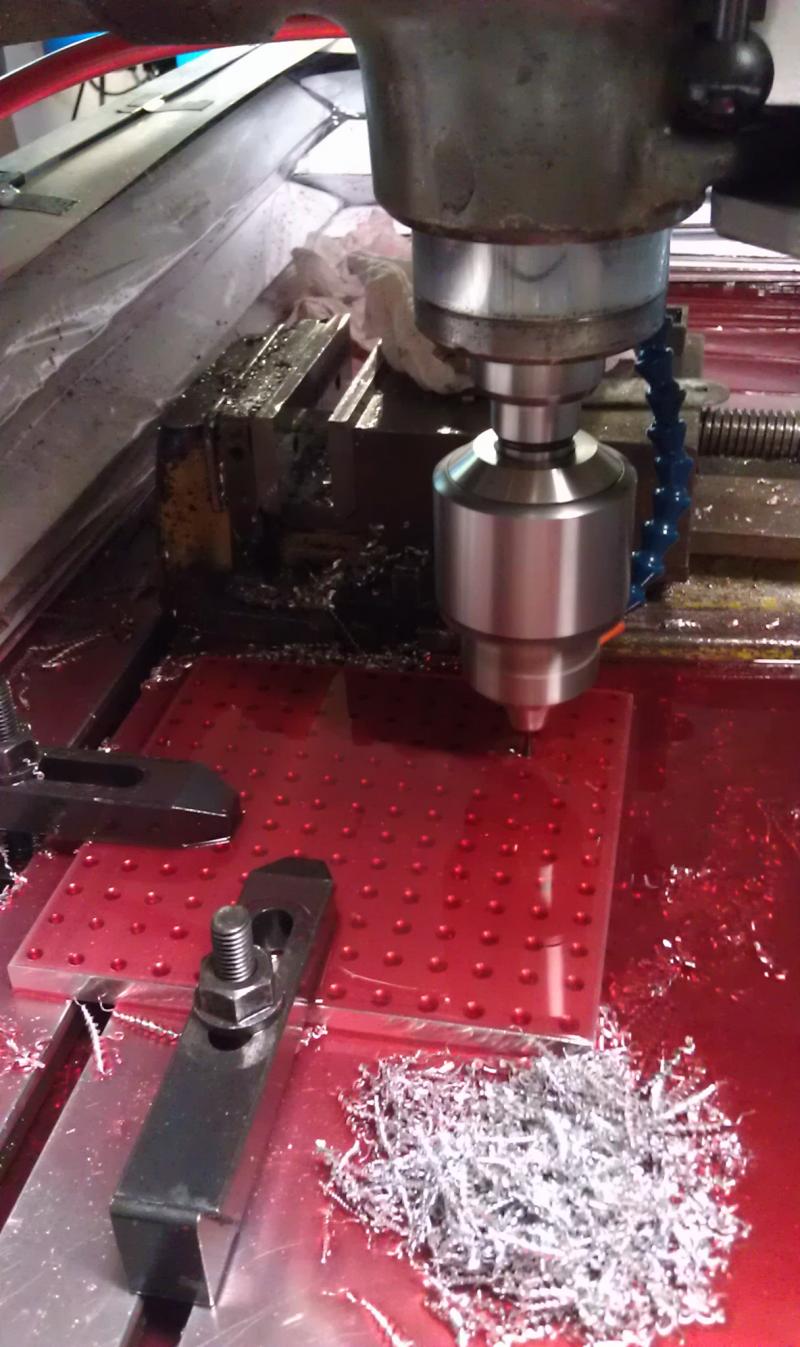

This picture is of my CNC milling machine doing an operation called thread milling. It is making threads, in all those holes in the grid pattern for me.

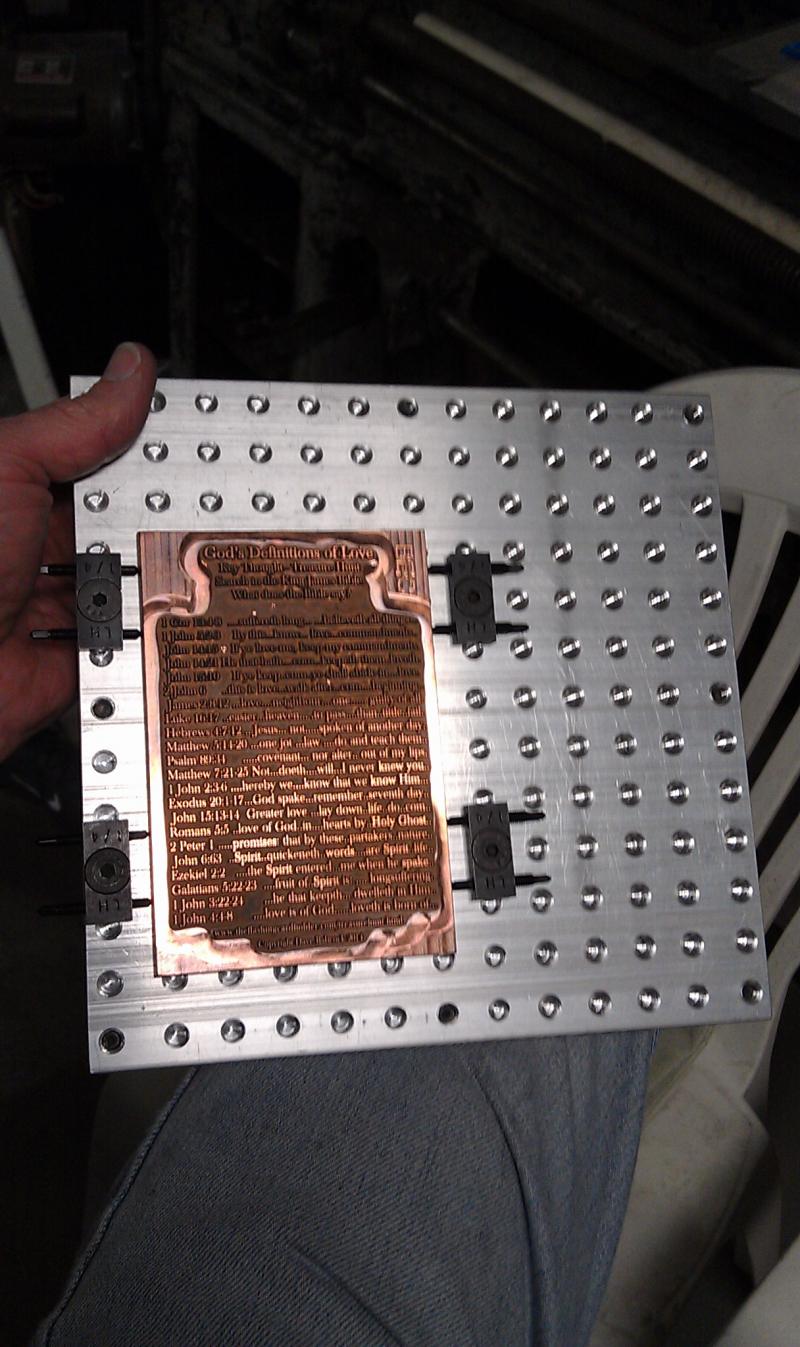

Test Mounting the "God's Definitions of Love," Copper Die

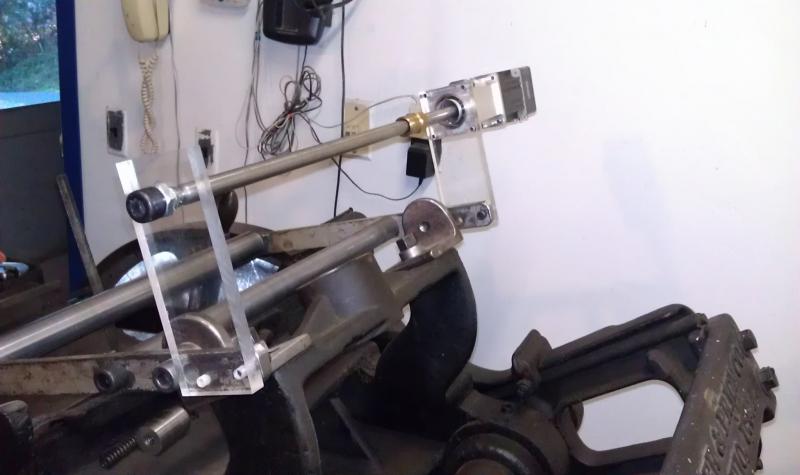

Test mounting the servo motor, and parts for the computerized foil advance system. I am using a Animatics 2337D SmartMotor. I usually write the programs for them, on one of my laptops.
Lord willing, perhaps later on, I may add more pictures of the process, including a video or two. But I have got to get to other things right now.
Thread Milling Video
Below, is a little video showing thread milling of the hot plate, and the feeds and speeds used. It's a bit rough, but you can watch it if you want to. I take lots of these videos just for my own reference, so when taken it was not intended to be shared. But I thought perhaps you might like to see a little bit of what goes on here.
